The role of epoxy structural adhesives: Megapoxy’s civil engineering solutions

Choosing the right structural adhesive to support strength, load transfer and service life.

Today, the materials used for civil engineering have to do more: carry higher loads, resist harsher environments and last longer than ever.

Far beyond simply holding elements together, epoxy structural adhesives create permanent, robust bonds that help transfer load, strengthen critical connections and extend asset life.

Structural adhesives for bridges and transport infrastructure

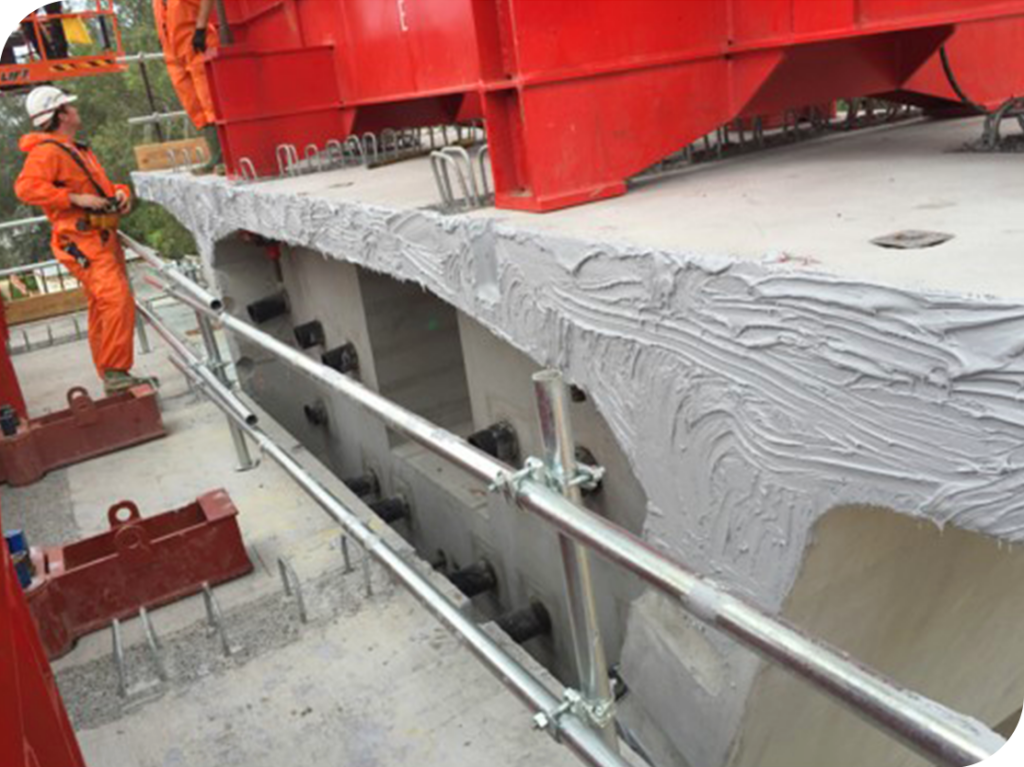

Some of the most demanding structural adhesive applications are found in bridge construction. In segmental concrete bridges, epoxy adhesives permanently bond precast sections together, creating joints capable of transferring significant loads while withstanding constant movement, vibration and environmental exposure. For Tasmania’s landmark Bridgewater Bridge project,  Megapoxy PME SBA was used to bond 1,082 precast concrete segments across a 1.2-kilometre crossing.

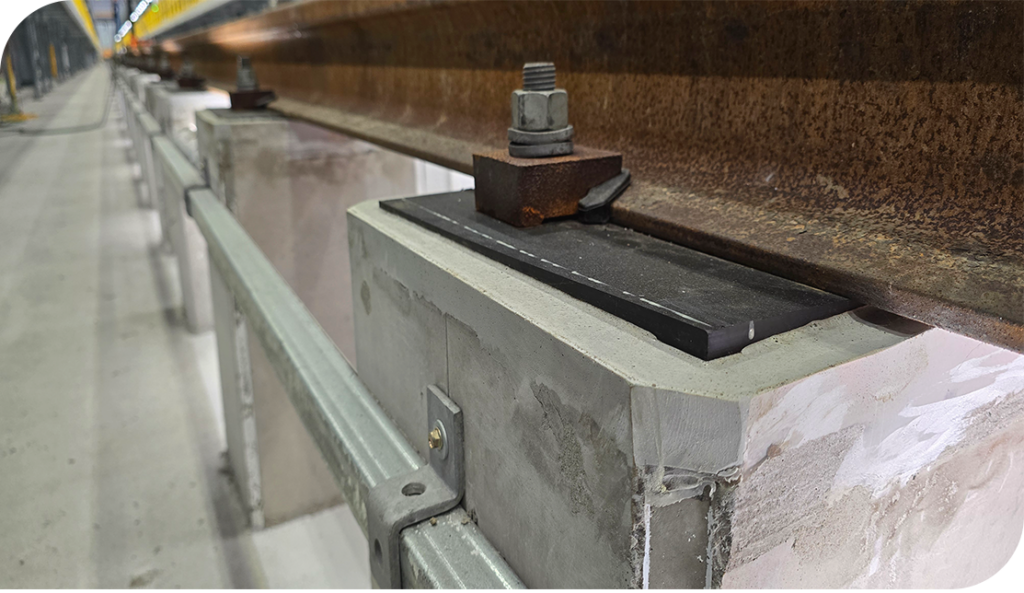

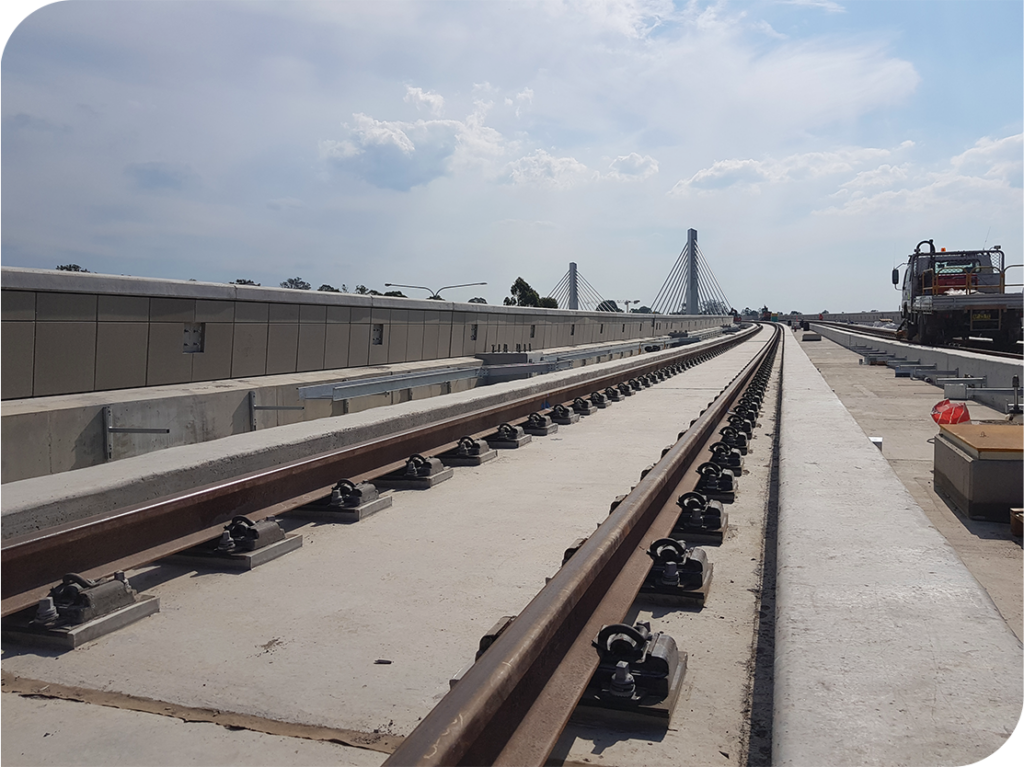

In rail infrastructure, structural bonding often requires a complete system, with epoxy solutions working together to bond, fill, grout and repair different parts of the same asset. For example, Sydney Metro Northwest was a four-kilometre elevated Skytrain project with a 270-metre cable-stayed bridge. Megapoxy PME SBA was applied to the match-cast segment faces; Megapoxy P1, a high-strength paste adhesive and filler, was used to fill gaps between segments; and Megapoxy 206 Ultra, a flowable heavy-duty grout, was used to help lock the rail system onto the concrete rail deck.

Anchoring steel and restoring strength

In bridges, tunnels and transport networks, steel fixings need to hold under serious load. Structural epoxy adhesives create a high-strength chemical bond that secures starter bars, threaded rod and retrofit reinforcement directly into concrete or rock.

Products like Megapoxy H can be poured directly into drilled holes to anchor reinforcing bars or threaded rods. Because it is hydrophilic, it can be used in damp, wet or splash-zone conditions. Where the hole is horizontal or overhead, Megapoxy HT provides a non-sag option that stays in place while it cures.

Epoxy systems are also used to restore structural integrity in cracked concrete structures, avoiding the cost and disruption of large-scale removal and replacement. Specialised crack repair systems involve injecting low-viscosity epoxy deep into cracks, sealing and stabilising from within.

At Regentville Bridge, this approach was used to repair significant cracking in reinforced concrete bridge piers. It was a permanent, comprehensive solution delivered with the speed and simplicity needed to get the bridge back in service quickly.

Restoring bond and concrete cover

Many civil structures rely on steel reinforcement protected by a layer of concrete cover. When that cover breaks down, is cut back or becomes too thin, the steel is more vulnerable to water, chlorides and corrosion.

Structural paste adhesives such as Megapoxy P1 can be used to rebuild low-cover areas, restore protection around the steel and maintain structural integrity. In some applications, it can provide protection similar to around 50 mm of additional concrete cover.

Typical applications include rebuilding stormwater pit edges, reinstating cover around pipes and services, and repairing localised areas where demolition or deterioration has left steel reinforcement vulnerable. The objective is simple: restore protection around the steel and extend asset service life.

Structural adhesives in water and wastewater infrastructure

Specialist epoxy formulations are used at every stage of water operations, from bonding pipes, culverts and structural components to stabilising pumps and coating tanks.

In this industry, civil engineering projects face the dual challenge of water immersion and highly aggressive chemical environments. That’s why epoxy solutions are developed and specified carefully – with corrosion, chemical and abrasion resistance as well as potable water compliance where necessary.

The long-term durability potential of water infrastructure is highlighted by a PUB lime saturator in Singapore – that’s going strong after restoration more than 30 years ago. Back in the 1990s, Megapoxy H and HT were used to repair leakage and concrete deterioration within the tank. The system provided a high-strength, potable-water compliant repair that’s still in service.

And the applications aren’t always obvious. On one desalination plant, a caisson – a massive concrete cylinder – was lowered into a structural frame on the seabed. The goals was to create a safe, dry working area for pylon construction, and the fit had to be exact. Megapoxy P1 was applied around the outside of the caisson to take up small gaps and construction tolerances, helping lock the structure into position and create a durable waterproof seal.

Need help selecting a structural adhesive?

Download our Civil Engineering Guide, browse our infrastructure and civil engineering solutions, or contact us for project-specific advice and specification support.
